PRODUCT SPECIFICATIONS

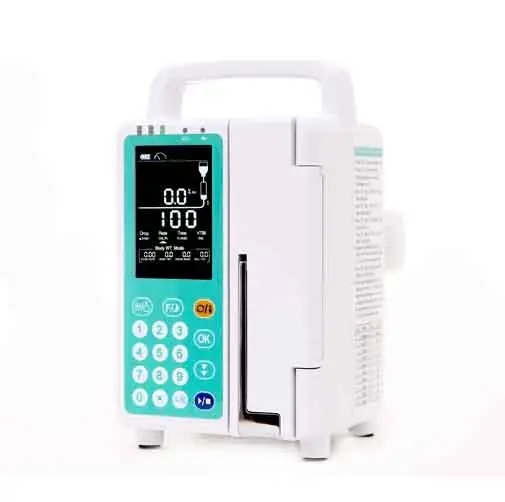

Veterinary Infusion Pump IPA112

Veterinary Infusion Pump — Specifications
Model No	IPA112
Range of Flow Rate	0.1-1200ml/h
Infusion Mode	Rate, Rate-Time, Rate-Volume, Time-Volume, / Drop-Volume, Drop-Time
Drug Library	20 drug 11st with drug code display
Purge/Bolus Rate	1-1200ml/h, defalut 800ml/h, step by 1ml/h
Single Bolus Volume	1.0-10ml Adjustable, default 3 ml
Time Preset	00: 01~99: 59 (Hour: Min)
Volume Range	1-9999ml
Drop Range	1-400d/min, step by 1 drop
Accuracy	±5%
Total Volume Infused	0-9999 ml
Air in line Detection	Ultrasonic wave
Visible & Audible Alarms	Air in line, Down Stream Occlusion, Door Open, VTBI Completion, / Near Completion, Low Battery, Battery Exhausted, Low Temperature, Motor Malfunction, AC Disconnection, AC connection, I.V set / dislocation, MPU Error, Batery Charing, Battery Charing Completion, Circuit Malfunction
K.V.O Rate	1ml/h-5ml/h, default value 1ml/h, can be programmed by user step 0.1ml/h
Internal Battery	Lithium battery, 11.1/2000mAh, more than 4 hours working back up
Power Consumption	30VA
Power	AC 100V-240V 50HZ/60HZ
Classication	Class II, Type CF, IPX4
Dimension & Weight	13x17.5x23 cm; 2Kg
Optional Function	Ambulance DC 12V
