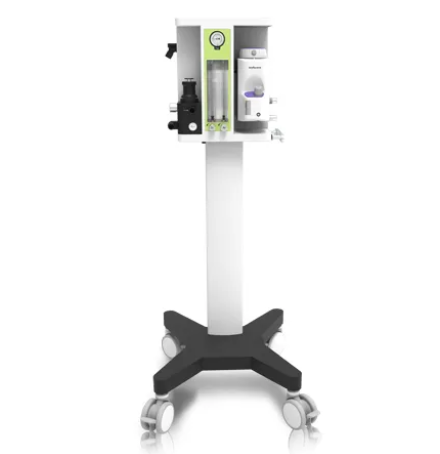

M800 Large-Animal Anesthesia Workstation for Horses and Large Veterinary Patients

Large animal anesthesia requires more than simply scaling up a standard anesthesia machine. Horses, calves, foals and other large animals need powerful ventilation, wide tidal volume coverage and stable anesthesia management throughout the procedure. The M800 Large-Animal Anesthesia Workstation from RHCMed is designed as a dedicated inhalation anesthesia solution for large veterinary patients.

M800 integrates a ventilator and an anesthesia machine into one workstation, providing a single-platform solution for both neonatal and adult large animals. With an animal weight range from 5 kg to 1.8 t and a tidal volume control range of 50 mL to 19 L, the system is suitable for a wide range of large-animal surgical anesthesia applications.

For equine and large-animal practices, ventilation performance is one of the most important considerations. M800 is fully electrically driven and electronically controlled, with no driving gas required. This turbine-driven design can help reduce procedure costs and improve system independence. Its peak inspiratory flow can reach up to 1,000 L/min, supporting the ventilation demands of large animals during surgery.

The workstation supports comprehensive ventilation modes, including VS, AVS, PS, VCV, PCV, PRVC, SIMV-V, SIMV-P, SIMV-PRVC and inspiratory hold function. AVS mode can automatically adjust ventilation parameters according to end-tidal CO₂, helping deliver more suitable ventilation settings during anesthesia. This is especially valuable for long procedures or cases where respiratory status changes during surgery.

M800 also offers a 15.6-inch high-resolution touchscreen, multiple waveform layouts, configurable O₂/Air or O₂/N₂O flowmeters, dual vaporizer mounting and optional EtCO₂, anesthetic gas or sidestream CO₂ monitoring modules. These features make it a strong veterinary anesthesia machine for hospitals that manage horses, large farm animals and mixed large-animal cases.

For veterinary teams seeking a powerful large animal anesthesia machine, RHCMed M800 delivers the ventilation capacity, flexibility and clinical visibility needed for modern large-animal anesthesia.
